Accessories

CA-C5-SH-C5 Cable, shielded, 5-pin high retention Connector on each end

This shielded cable has 24 AWG conductors and a 5-pin high retention connector (TE Connectivity 3-640441-5) on both ends. This cable is compatible with the E2, E3, H1, H3, L2, S1, and S2 encoders and with the EM1 and EM2 encoder modules.

More CA-C5-SH-C5 Details

CA-C5-SH-FC5 Cable, shielded, 5-pin high retention Connector to 5-pin latching connector

This shielded cable has 24 AWG conductors, a 5-pin high retention connector on one end, and a 5-pin latching connector on the other. The high-retention connector (TE Connectivity 3-640441-5) mates to US Digital's E2, E3, EM1, EM2, H1, H3, L2, S1, S2 and the latching connector (Molex 14-60-0052)...

More CA-C5-SH-FC5 Details

CA-C5-SH-NC Cable, shielded, 5-pin high retention Connector to Flying Leads

This shielded cable has 24 AWG conductors, a 5-pin high retention (TE Connectivity 3-640441-5) connector on one end, and flying leads on the other end. This cable is compatible with the E2, E3, L2, H1, H3, S1, and S2 encoders and with the EM1 and EM2 encoder modules.

More CA-C5-SH-NC Details

CA-C5-W4-NC Cable, four Discrete Wires, 5-pin High Retention Connector to Flying Leads

This cable is four discrete 22 AWG conductors, with a 5-pin high retention connector (TE Connectivity 3-640440-5) on one end and flying leads on the other.  It is compatible with non-indexed versions of the E2, E3, H1, H3, L2, S1, and S2 encoders as well as the EM1 and EM2 encoder modules.

More CA-C5-W4-NC Details

CA-C5-W5-NC Cable, Five Discrete Wires, 5-pin High Retention Connector to Flying Leads

This cable is five discrete 22 AWG conductors, with a 5-pin high retention connector (TE Connectivity 3-640440-5) on one end and flying leads on the other. It is compatible with the E2, E3, H1, H3, L2, S1, and S2 encoders and with the EM1 and EM2 encoder modules.

More CA-C5-W5-NC Details

CA-C10-F-C10 Cable, flat, 10-pin high retention on each end

Flat cable has 28 AWG conductors and a 10-pin IDC high retention connector on each end. The Circuit Assembly connector (10FID-A-SPT-SR) comes with a strain relief. The cable is compatible with US Digital's PC4 and PC5 cable drivers.

More CA-C10-F-C10 Details

CA-C10-SH-C10 Cable, Shielded, 10-pin high retention connector on each end

This shielded cable features 24 AWG conductors and a 10-pin high-retention connector on each end. The TE Connectivity connector consists of a pre-loaded IDC housing (1-102694-0), a polarizing cover (102537-3), and a strain relief cover (102536-3). This cable is compatible with US Digital's PC4 and...

More CA-C10-SH-C10 Details

CA-C10-SH-NC Cable, Shielded, 10-pin high retention connector to flying leads

This shielded cable features 24 AWG conductors and a 10-pin high-retention connector on one end and flying leads on the other. The TE Connectivity connector consists of a pre-loaded IDC housing (1-102694-0), a polarizing cover (102537-3), and a strain relief cover (102536-3). This cable is...

More CA-C10-SH-NC Details

CA-C10L-SH-NC Cable, Shielded, 10-pin high retention connector to flying leads (Avago Pin-Out)

This shielded cable features 24 AWG conductors and a 10-pin high-retention connector on one end and flying leads on the other. The TE Connectivity connector consists of a pre-loaded IDC housing (1-102694-0), a polarizing cover (102537-3), and a strain relief cover (102536-3). This cable is...

More CA-C10L-SH-NC Details

CA-CFR-PS-DB9P T7-232 Power and Serial Communication Cable

This cable connects the 5-pin J1 connector of a T7 Networked Absolute Inclinometer (RS232 interface) to a standard PC's DB9 RS-232 serial COM port. The power connector is used to supply 5.5V to 30V power to the T7. This allows the host computer to read the position and set parameters of the T7-232...

More CA-CFR-PS-DB9P Details

CA-CFR-PS-NC T7 PUR Shielded Cable with Leads

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. This cable is used with the RS232 or RS485 versions of US Digital's T7 Networked Absolute Inclinometer.

More CA-CFR-PS-NC Details

CA-CFTR-PS-NC T7 PUR Shielded Cable with Leads and Terminating Resistor

This PUR (polyurethane) shielded cable has a T7 right angle connector at one end and unterminated wires at the other end. The cable has a built-in 120-ohm terminating resistor across pin 4 and pin 5. This cable is used with RS485 versions of US Digital's T7 Networked Absolute Inclinometer.

More CA-CFTR-PS-NC Details

CA-CM-PS-CFR T7 PUR Shielded Cable

This shielded PUR (polyurethane) cable has a T7 straight connector and a right-angle connector at the other end.  You can use this cable with the CON-CAN-MFF splitter to create a daisy-chained network of US Digital's RS232 or RS485 T7 Networked Absolute Inclinometer units.

More CA-CM-PS-CFR Details

CA-CM-PS-CFTR T7 PUR Shielded Cable with Terminating Resistor

This shielded PUR (polyurethane) cable has a T7 straight connector at one end and a right-angle connector at the other end. The cable has a built-in 120-ohm terminating resistor across pin 4 and pin 5. This cable is used with RS485 versions of US Digital's T7 Networked Absolute Inclinometer.Please...

More CA-CM-PS-CFTR Details

CA-DF5-SH-NC Cable, shielded, 5-pin high retention Connector to flying leads

This shielded cable has five 30 AWG conductors, a 5-pin high retention connector (Hirose housing DF52-5P-0.8C and 5 crimp contacts DF52-2832-PCF) on one end and flying leads on the other.  It is compatible with the E16 and S16 encoders.

More CA-DF5-SH-NC Details

CA-E15-SH-NC Cable, 15-Pos High Retention, Flying Leads

This shielded cable has 28 AWG conductors, a 15-pin high retention connector (JAE Electronics FI-W15S housing with FI-C3-A1-15000 contacts) on one end and flying leads on the other end. It is compatible with US Digital's EC35 Encoder.

More CA-E15-SH-NC Details

CA-FC5-SH-FC5 Cable, Shielded, 5-pin Latching Connector on each end

This shielded cable has 24 AWG conductors and a 5-pin latching connector (Molex 14-60-0052) on each end. One end typically connects to US Digital's E5, E6, HB5M, HB6M, H5, H6, S5, or S6 encoder, while the other end connects to an encoder interface input, such as on the ED4 Digital Encoder...

More CA-FC5-SH-FC5 Details

CA-FC5-SH-LC5 Cable, shielded, 5-pin latching connector to 5-pin high retention connector

This shielded cable has 24 AWG conductors, a 5-pin latching connector (Molex 14-60-0052) on one end, and a 5-pin high retention connector (TE Connectivity housing 1-87175-2 and 5 socket contacts 87165-1) on the other. The high-retention connector is typically used to connect to US Digital's E2,...

More CA-FC5-SH-LC5 Details

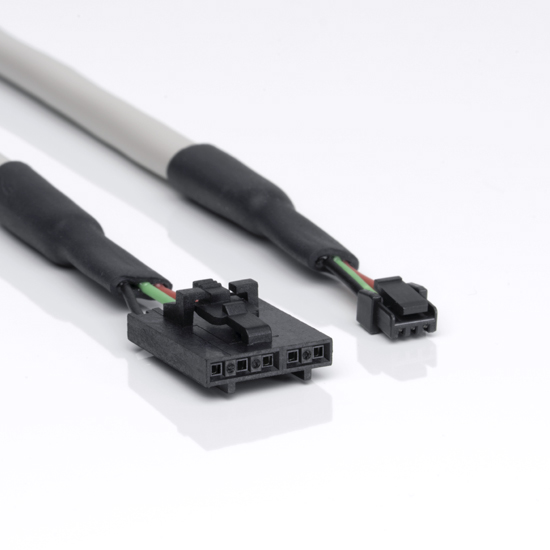

CA-FC5-SH-MCL3 Cable, shielded, 5-pin latching Connector to 3-pin latching connector

This shielded cable has 26 AWG conductors, a 5-pin latching connector (Molex 14-60-0052) on one end, and a 3-pin latching connector (Molex housing 5055650301) and 3 crimp terminals (Molex 5054311000) on the other end. This cable is used to connect the PWM output version of the...

More CA-FC5-SH-MCL3 Details

CA-FC5-SH-MIC3 Cable, shielded, 5-pin latching Connector to 3-pin high retention connector

This shielded cable has 26 AWG conductors, a 5-pin latching connector (Molex 14-60-0052) on one end, and a high retention connector (Molex housing 51021-0300) and 3 crimp terminals 50079-8001) on the other end. This cable is used to connect the PWM output version of the MA3/MAE3 to the...

More CA-FC5-SH-MIC3 Details

CA-FC5-SH-MIC4 Cable, Shielded, 5-Pin Latching Connector to 4-Pin Micro Connector, Shielded Cable

This shielded cable has 26 AWG conductors, a 5-pin latching connector (Molex 14-60-0052) on one end and a 4-pin Molex micro-connector (consisting of a housing (51021-0400), and 4 crimp terminals (50079-8001)) on the other end. This cable is used with several different products in our offerings, such...

More CA-FC5-SH-MIC4 Details

CA-FC5-SH-NC Cable, Shielded, 5-pin Latching Connector to Flying Leads

This shielded cable has 24 AWG conductors, a 5-pin latching connector (14-60-0052) on one end and flying leads on the other. It is compatible with the E5, E6, ED4, HB5M, HB6M, H5, H6, S5, and S6 encoders.

More CA-FC5-SH-NC Details

CA-FC5-SH-RC7 Cable, shielded, 5-pin latching Connector to a 7-pin MIL-DTL-5015 connector

This shielded cable has 24 AWG conductors, a 5-pin latching connector (Molex 14-60-0052) on one end and a circular 7-pin MIL-DTL-5015 connector (Amphenol ACS06E16S-1S or equivalent) on the other. The screw-on connector attaches to US Digital's HD25 Industrial Rugged Metal Optical Encoder, and the...

More CA-FC5-SH-RC7 Details

CA-FC5-W4-NC Cable, Four Discrete Wires, 5-pin latching connector to flying leads

4 discrete 22 AWG conductor cable, 5-pin latching connector (Molex 14-56-7052) to flying leads. Use with non-indexed E5/E6/HB5M/HB6M/H5/H6S5/S6.

More CA-FC5-W4-NC Details

CA-FC5-W5-NC Cable, five discrete wires, 5-pin Latching Connector to flying leads

This cable is five discrete 22 AWG conductors, a 5-pin latching connector (Molex 14-56-7052) on one end and flying leads on the other end. This cable is compatible with the E5, E6, HB5M, HB6M, H5, H6, S5, and S6 encoders.

More CA-FC5-W5-NC Details

CA-FC10-SH-FC10 Cable, 10-Pos Latching Both Ends

This shielded cable features 24 AWG conductors and a 10-pin connector on each end. The Molex connector consists of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058). The connector is compatible with US Digital E5, E6, ED4, H5, H6, HB5M, HB6M, S5, S6, QSB and USB4.

More CA-FC10-SH-FC10 Details

CA-FC10-SH-NC Cable, Shielded, 10-pin latching connector to flying leads

This shielded cable features 24 AWG conductors and a 10-pin latching connector on one end with flying leads on the other. The Molex connector consists of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058). The connector is compatible with US Digital E5, E6, ED4, H5, H6,...

More CA-FC10-SH-NC Details

CA-FC10-W8-NC Cable, eight Discrete Wires, 10-pin Latching Connector to Flying Leads

This cable features eight 24 AWG conductors with a 10-pin latching connector on one end to flying leads. The Molex connector consists of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058). The connector is compatible with US Digital E5, E6, ED4, H5, H6, HB5M, HB6M, S5, S6,...

More CA-FC10-W8-NC Details

CA-FC10L-SH-FC10L Cable, Shielded, 10-pin latching connector on each end (Avago Pin-Out)

This shielded cable features 24 AWG conductors and a 10-pin latching connector on each end (Avago pinout). The Molex connector consists of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058). This cable is primarily used with Avago/Agilent direct replacements.

More CA-FC10L-SH-FC10L Details

CA-FC10L-SH-NC Cable, Shielded, 10-pin latching connector (Avago Pin-Out) to flying leads

This shielded cable features 24 AWG conductors and a 10-pin latching connector on one end and flying leads on the other. The Molex connector consists of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058). This cable is primarily used with Avago/Agilent direct...

More CA-FC10L-SH-NC Details

CA-FC10P-SH-NC Cable, Shielded, 10-Pin Latching Connector to flying leads (QSB-D QSB-M Pin-Out)

This shielded cable features 24 AWG conductors and a 10-pin latching connector on one end and flying leads on the other. The Molex connector consists of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058). This cable is intended for use with the digital I/O port on US...

More CA-FC10P-SH-NC Details

CA-LC5-SH-LC5 Cable, shielded, 5-pin high retention Connector on each end

This shielded cable has 24 AWG conductors and a 5-pin high retention connector (TE Connectivity housing 1-87175-2 and 5 socket contacts 87165-1) on each end. It is compatible with the E2, E3, H1, H3, L2, S1, and S2 encoders as well as the EM1 and EM2 encoder modules.

More CA-LC5-SH-LC5 Details

CA-LC5-SH-NC Cable, shielded, 5-pin high retention Connector to flying leads

This shielded cable has 24 AWG conductors, a 5-pin high retention connector (TE Connectivity housing 1-87175-2 and 5 socket contacts 87165-1) on one end, and flying leads on the other end. It is compatible with the E2, E3, H1, H3, L2, S1, and S2 encoders as well as the EM1 and EM2 encoder...

More CA-LC5-SH-NC Details

CA-LC5-W4-NC Cable, four Discrete Wires, 5-pin High Retention Connector to Flying Leads

This cable is four discrete 22 AWG conductors, with a 5-pin high retention connector (TE Connectivity housing 1-87175-2 and 5 socket contacts 87165-1) on one end and flying leads on the other.   It is compatible with non-index versions of the E2, E3, H1, H3, L2, S1, S2 encoders...

More CA-LC5-W4-NC Details

CA-LC5-W5-NC Cable, five Discrete Wires, 5-pin High Retention Connector to Flying Leads

This cable is five discrete 22 AWG conductors, with a 5-pin high retention connector (TE Connectivity housing 1-87175-2 and 5 socket contacts 87165-1) on one end and flying leads on the other. It is compatible with the E2, E3, H1, H3, L2, S1, S2 encoders and as well as the EM1 and EM2...

More CA-LC5-W5-NC Details

CA-MCL3-SH-NC Cable, shielded, 3-pin Latching Connector to Flying Leads

This shielded cable has 26 AWG conductors, terminated with a 3-pin latching connector on one end and flying leads on the other. The Molex connector consists of a housing (5055650301) and 3 crimp-on connectors (5054311000). This cable is compatible with the MA4 and MAE4 encoders.

More CA-MCL3-SH-NC Details

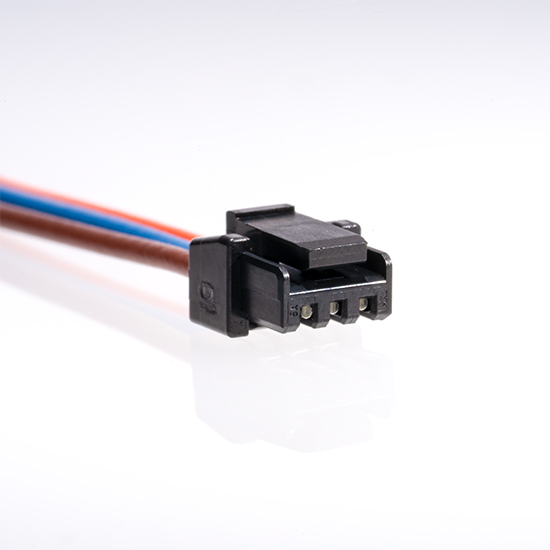

CA-MCL3-W3-NC Cable, 3-Pos Latching, Flying Leads

This cable is three discrete 26 AWG conductors, with a 3-pin female latching connector on one end and flying leads on the other. The Molex connector consists of a housing (5055650301) and 3 crimp-on connectors (5054311000). This cable is compatible with the MA4 and MAE4 encoders.

More CA-MCL3-W3-NC Details

CA-MD3 USB to RS485 Adapter Cable for MD3

The CA-MD3 is an interface cable that connects a PC's USB port to an RS485 interface. The RS485 port does not have a termination resistor. The RS485 connector is a 6-pin RJ25 modular connector, and designed for US Digital's MD3 stepper motor driver/controller but may be used with other RS485...

More CA-MD3 Details

CA-MD6-SH-MD6 Cable, 6-Pos Modular Both Ends

The shielded cable has 26 AWG conductors with a 6-pin modular connector on each end. It is for use with US Digital's A2 and A2K encoders, A2T inclinometer, and SEI-USB adapter.

More CA-MD6-SH-MD6 Details

CA-MD6-SH-RC10 6-Pin Modular Connector / 10-Pin MIL-DTL-5015 Connector, Shielded Cable

A 10-pin MIL-DTL-5015 female connector connected to a 6-pin modular connector via an 8 conductor shielded round twisted pair 26 AWG cable.

More CA-MD6-SH-RC10 Details

CA-MD6-SS-MD6 Cable, unshielded, 6-pin Modular Connector on each end

This unshielded cable has 28 AWG conductors and a 6-pin modular connector on each end. It is for use with US Digital's A2 and A2K encoders, A2T inclinometer, and SEI-USB adapter.

More CA-MD6-SS-MD6 Details

CA-MD6A-SS-MD6 Cable, 6-Pos Modular (A2 Analog)

This unshielded cable has 28 AWG conductors and a 6-pin modular connector on each end. It is intended for connecting a single analog output A2 version of US Digital's A2 Absolute Optical Shaft Encoder to the digital SEI bus for serial communication; there is no connection from the analog...

More CA-MD6A-SS-MD6 Details

CA-MIC3-SH-NC Cable, shielded, 3-pin high retention Connector to Flying Leads

This shielded cable has 26 AWG conductors, with a 3-pin high retention connector on one end and flying leads on the other end. The Molex connector consisting of a housing (51021-0300) and 3 crimp terminals (50079-8001) for 26-28 AWG wires. This cable is compatible with the MA3 and MAE3...

More CA-MIC3-SH-NC Details

CA-MIC3-W3-NC Cable, Three Discrete Wires, 3-pin High Retention Connector to Flying Leads

This cable is three discrete 26 AWG conductors, with a 3-pin connector on one end and flying leads on the other. The Molex connector consists of a housing 51021-0300 and 3 crimp terminals 50079-8001 for 26-28 AWG wires. Cable compatible with US Digital MA3 and MAE3 encoders.

More CA-MIC3-W3-NC Details

CA-MIC4-SH-NC Cable, 4-Pos High Retention

This shielded cable has 26 AWG conductors, a 4-pin high retention connector on one end and flying leads on the other end. The Molex connector consists of a housing 51021-0400, and 4 crimp terminals 50079-8001 for 26-28 AWG wires. This cable is compatible with the E4T, S4T, and E8T US Digital...

More CA-MIC4-SH-NC Details

CA-MIC4-W4-NC Cable, Four Discrete Wires, 4-pin High Retention Connector to Flying Leads

This cable is four discrete 26 AWG conductors, with a 4-pin high retention connector on one end and flying leads on the other. The Molex connector consists of a housing (51021-0400), and 4 crimp terminals (50079-8001) for 26-28 AWG wires. This cable is compatible with the E4T, S4T, and E8T US...

More CA-MIC4-W4-NC Details

CA-MIC6-SH-NC Cable, Shielded, 6-pin High-Retention Connector to Flying Leads

This shielded cable has 26 AWG conductors, a 6-pin high retention connector on one end and flying leads on the other. The Molex connector consists of a housing (51021-0600) and 6 crimp terminals 50079-8001. This cable is compatible with the E4T, S4T, and E8T US Digital encoders with differential...

More CA-MIC6-SH-NC Details

CA-MIC6-W6-NC Cable, Three Discrete Wires, 6-pin High Retention Connector to Flying Leads

This cable is six discrete 26 AWG conductors, a 6-pin high retention connector on one end and flying leads on the other. The Molex connector consists of a housing (51021-0600) and 6 crimp terminals 50079-8001. This cable is compatible with the E4T, S4T, and E8T US Digital encoders with differential...

More CA-MIC6-W6-NC Details

CA-PCL6-SH-NC Cable, Shielded, 6-pin High-Retention Connector to Flying Leads

This shielded cable features 28 AWG conductors, a 6-pin high-retention connector on one end with flying leads on the other. The Molex connector consist of a housing (5013300600) and six crimp terminals (5011937000). Designed for use with US Digital’s M3K encoder.

More CA-PCL6-SH-NC Details

CA-RC7-SH-NC Cable, shielded, 7-pin MIL-DTL-5015 Connector to Flying Leads

A 7-pin MIL-DTL-5015 female connector on one end of a 7-conductor shielded round 24 AWG cable. This low-temperature cable (-20C to +80C) is used with US Digital's HD25 Industrial Rugged Metal Optical Encoder.

More CA-RC7-SH-NC Details

CA-RC10-SH-NC Cable, shielded, 10-Pin MIL-DTL-5015 Connector to flying leads

This shielded cable features 24 AWG conductors, a 10-pin MIL-DTL-5015 connector on one end and flying leads on the other. This cable is compatible with the HD25 and HD25A encoders.

More CA-RC10-SH-NC Details

CON-C5 5-pin High Retention Connector

A 5-pin TE Connectivity connector with a choice of 22 AWG (Red) 3-640440-5, 24 AWG (White) 3-640441-5, or 26 AWG (Blue) 3-640442-5. Compatible with US Digital products E2, E3, H1, H3, S1, S2, EM1, EM2.

More CON-C5 Details

CON-C10 10-pin High Retention Connector

A 10-pin TE Connectivity connector consisting of pre-loaded IDC housing (1-102694-0), a polarizing cover (102537-3), and a strain relief cover (102536-3) for 22-26 AWG wires. It is compatible with US Digital PC4 cable driver.

More CON-C10 Details

CON-CAN-MFF T7 BUS Splitter - 1M to 2F Connector

A T7 RS232 or RS485 bus splitter, 3-port, with 1 male and 2 female connections, sealed against dust.

More CON-CAN-MFF Details

CON-FC5 5-pin Latching Connector

A 5-pin Molex polarized latching connector with contact options for 22 AWG (14-56-7052), 24 AWG (14-60-0052), 26 AWG (14-60-0054), or 28 AWG (14-60-0056). The connector is compatible with US Digital E5, E6, ED4, H5, H6, HB5M, HB6M, S5, S6, QSB and USB4.

More CON-FC5 Details

CON-FC10 10-pin Latching Connector

A 10-pin Molex connector consisting of a polarized housing (15-04-5104), and two IDC 5-pin inserts (14-60-0058) for 24 AWG wires. A Molex crimper tool utilizes a module (62100-0700), and a pistol-grip hand tool (636000478). The connector is compatible with US Digital E5, E6, ED4, H5, H6, HB5M,...

More CON-FC10 Details

CON-LC5 5-pin High-Retention Connector

A 5-pin TE Connectivity connector consisting of a housing (1-87175-2) and 5 socket contacts (87165-1) for 22-26 AWG wires. Compatible with US Digital products E2, E3, H1, H3, S1, S2, EM1, EM2.

More CON-LC5 Details

CON-MD6 6-pin Modular Connectors

A 6-pin Adam Tech modular connector for flat (MTP-66-G).or round (MTPR-66-G) cables. Compatible with US Digital A2.

More CON-MD6 Details

CON-MIC3 3-pin High Retention Connector

A 3-pin Molex connector consisting of a housing (51021-0300) and 4 Crimp Terminals (50079-8001) for 26-28 AWG wires. Compatible with US Digital MA3 and MAE3.

More CON-MIC3 Details

CON-MIC4 4-pin High Retention Connector

A Molex 4-pin connector consisting of a shell (51021-0400) and 4 Crimp Terminals (50079-8001) for 26-28 AWG wires. Compatible with US Digital's E4T, E8T, and S4T encoders.

More CON-MIC4 Details

CON-MIC6 6-pin High Retention Connector

A Molex 6-pin connector consisting of a housing (51021-0600) and 6 Crimp Terminals (50079-8001) for 26-28 AWG wires. Compatible with US Digital's E4T, E8T, and S4T encoders.

More CON-MIC6 Details

CON-RC7 7-pin Round MIL-DTL-5015 Connector

A 7-pin MIL-DTL-5015 female connector (Amphenol PN ACS06E16S-1S or equivalent) for 18-24 AWG wire (solder pins). Compatible with the HD25 encoder.

More CON-RC7 Details

CON-RC10 10-pin Round MIL-DTL-5015 Connector

A 10-pin MIL-DTL-5015 female connector (Amphenol PN ACS06E18-1S or equivalent) for 18-24 AWG wire (solder pins). It is compatible with the HD25 and HD25A encoders.

More CON-RC10 Details

Centering Tool CTOOL & MCTOOL

During assembly, this reusable tool is designed as a simple method for accurately locating the encoder base relative to the shaft to promote concentricity, thereby providing the highest possible encoder accuracy.Note: Variations of the CTOOL are designed for the E2, E3, E5, E6, E8T, E16, EC35, and...

More Centering Tool Details

EA Incremental Encoder Adapter

• Single-ended driver or differential driver/receiver available
• Three digital channels (A/B/I encoder signals) per adapter
• Variety of connector options

More EA Details

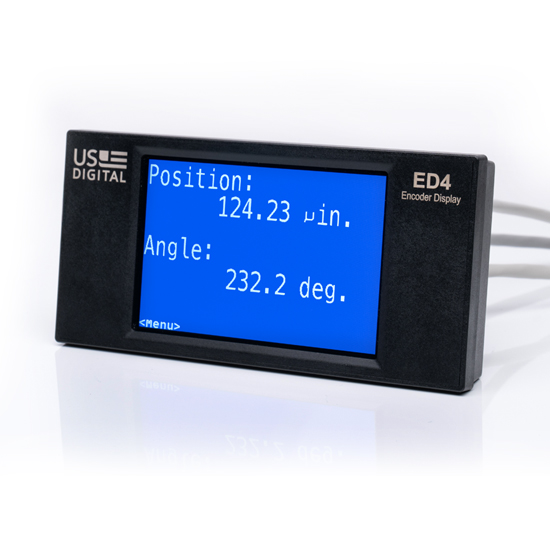

ED4 Digital Encoder Display

• Two input channels for quadrature, analog, or PWM encoder outputs
• Programmable display units, scale, and offsets
• Two alarm outputs and two digital capture inputs
• Quick, intuitive setup with PC GUI software ...

More ED4 Details

HEXD-050 HEX Driver - .050 in.

Hex driver, .050 in. flat-to-flat for #3-48 or #4-48 set screws.

More HEXD-050 Details

HEXW HEX Wrench

Hex wrench. Available in .050 in., .078 in. (5/64 in.) and .094 in. (3/32 in.) flat-to-flat sizes. The .050 in. size is used with #3-48 and #4-48 set screws.

More HEXW Details

LS7083N Encoder to Counter Interface Chip

• x1 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7083N Details

LS7083N-S Encoder to Counter Interface Chip

The LSI Computer Systems IC allows incremental shaft encoders to drive standard up/down counters. Connect the encoder quadrature outputs to the A and B inputs. The LS7083N-S outputs can connect directly to the up and down clock inputs of counters such as 74193 or 40193.The next generation Encoder to...

More LS7083N-S Details

LS7084N Encoder to Counter Interface Chip

• x1 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7084N Details

LS7084N-S Encoder to Counter Interface Chip

• x1 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin SOIC package ...

More LS7084N-S Details

LS7183N Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7183N Details

LS7183N-S Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin SOIC package ...

More LS7183N-S Details

LS7184N Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin DIP package ...

More LS7184N Details

LS7184N-S Encoder to Counter Interface Chip

• x1, x2 or x4 resolution multiplication
• TTL and CMOS compatible
• Low current (micro-amps)
• 8-pin SOIC package ...

More LS7184N-S Details

LS7267 24-BIT DUAL-AXIS Quadrature Counter

• Dual 24-bit counters to support X and Y axes in motion control applications
• Dual 24-bit comparators
• Digital filtering of input quadrature clocks
• Programmable 8-bit separate filter clock prescalers ...

More LS7267 Details

LS7267-S 24-BIT DUAL-AXIS Quadrature Counter

• Dual 24-bit counters to support X and Y axes in motion control applications
• Dual 24-bit comparators
• Digital filtering of input quadrature clocks
• Programmable 8-bit separate filter clock prescalers ...

More LS7267-S Details

LS7366R-S 32-Bit Quadrature Counter with Serial Interface

• Operating voltage: 3V to 5.5V (VDD - VSS)
• 5V count frequency: 40MHz
• 3V count frequency: 20MHz
• 32-bit programmable counter ...

More LS7366R-S Details

MD3 Microstepping Motor Driver

• 8 microstepping resolutions from 2 to 256 microsteps per step
• -H option: 0.5 to 7.0 Amps peak phase current
• -L option: 0.05 to 1.8 amps peak phase current
• Single 9 to 50V supply voltage ...

More MD3 Details

PC3 Encoder Open Collector Cable Driver

The PC3 provides single-ended, open collector outputs and includes a switching power regulator that accepts a power supply from 9.5 to 32 volts. The PC3 is intended for applications where 5VDC is not available to power the encoder or higher voltage output from the encoder channel is needed. To...

More PC3 Details

PC4 Incremental Encoder Cable Driver

The PC4 is a small, plug-in RS-422 cable driver board that drives long cables up to one thousand feet using differential signaling to improve noise immunity. The PC4 can be used with the E2, E3, H1, H3, S1, and S2 encoders. Each board has a 5-pin socket designed to plug into the 5 pins of the...

More PC4 Details

PC5 Broadcom/Avago Compatible Incremental Encoder Cable Driver

• Broadcom/Avago HEDL compatible output

More PC5 Details

PS-12 Regulated Switching 12 V (1.5 A) Power Supply

CE Marking: Starting July 22nd, 2014, some US Digital products will contain the CE Marking. The PS-12 will not contain a CE Marking and will not be available for shipping to CE Mark required countries (for example, all countries within the European Union (EU)) after July 10th, 2014. See the Product...

More PS-12 Details

QSB Quadrature to USB Adapter

• Low-cost, easy-to-use USB (Type A) adapter
• QSB-S and QSB-D reads single-ended or differential quadrature, PWM and analog encoders
• QSB-M adds four analog and four digital I/O pins and 1 channel stepper motor control to QSB-S
• Reads quadrature count rate up to 6 MHz ...

More QSB Details

SCREWS Thread Fasteners

Unified National and Metric fasteners in a multitude of sizes and drive/head styles.Part #: SCREW-080-250-PH (configure)Description: Pan Head, Philips #0-80 UNF x 1/4 in.Related Products: E2, E3, E5 and E6Use: Base MountingQuantity Required: 3Part #: SCREW-256-188-SH (configure)Description: Socket...

More SCREWS Details

SEI-USB SEI to USB Adapter

• USB 1.1 device communicates at 12 Mbit/sec
• Compatible with USB 2.0 hubs and host adapters
• Supports up to 15 total devices on the SEI bus
• Supports SEI bus lengths up to 1,000 feet, depending on the number of devices attached. ...

More SEI-USB Details

SPACER Spacer Tool

This reusable tool is used to provide and maintain the proper spacing between the encoder disk and the encoder base during assembly.

More SPACER Details

USB4 Encoder Data Acquisition USB Device

• Real-time tracking of up to 4 incremental encoders with or without index (up to 5 MHz encoder input frequency)
• 4 channel pulse width, pulse period and RPM measurement
• Available with single-ended or differential encoder inputs, optional DIN rail mounting
• 8 digital outputs, 8 digital inputs, 4 A/D inputs , 4 D/A outputs ...

More USB4 Details
