PS-24 REGULATED SWITCHING 24 V (2.5 A) POWER SUPPLY

PS-24 Features

See more info below

Configure the PS-24

The PS-24 is no longer available for purchase.

PS-24 Product Description

The PS-24 is a 60 W regulated switching power supply that outputs 24 VDC @ 2.5 A. The power supply covers voltage inputs ranging from 85 VAC to 240 VAC. Typical efficiency is 78%, and the output is short circuit protected. When an output short is present, the PS-24 will switch on every 250 mS for 10 mS. A power-on LED is provided.

The output connector is a 2.1 mm circular plug attached to a 24-inch long cable. A 6 foot long 120 VAC power cord comes standard with the PS-24.

Please note: The third conductor, earth ground, on the input power cord is connected to DC common. You must use an isolation adapter on the AC receptacle if it is desired to isolate DC output common from earth ground.

Product Specifications

SPECIFICATIONS

Input Voltage 85 VAC to 240 VAC
Output Voltage 24 VDC ± 5%
Input Frequency 47 Hz to 63 Hz
Ripple & Noise ± 200 mV maximum
Operating Temperature 0 C to 40 C
Storage Temperature -20 C to 60 C
Protections Over voltage, current and short circuit
Certification UL, CSA, TUV approved, CE mark
EMI Meets FCC class "B"
Size (inches) 1.50 x 2.36 x 4.70 (HWL)

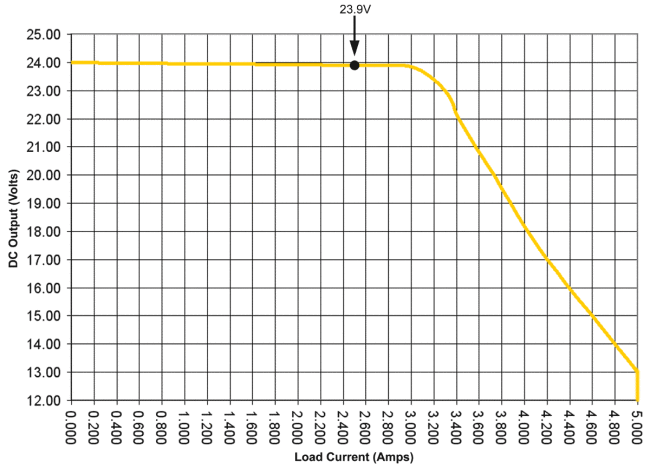

OUTPUT VOLTAGE VS. LOAD

CONNECTOR

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
PCN 4464 - CE - RoHS 6/30/2014

US Digital is aware of the increasing attention to world-wide environmental regulations, specifically with regard to the need for hazardous substance restrictions in electronic components and systems. As of July 10th, 2014 US Digital will now be CE Marking certain products inline with compliance under RoHS Directive (2011/65/EU). In order to achieve RoHS Compliance, the products will not contain more than the acceptable levels of the listed restricted substances within the RoHS 2011/65/EU directive.

Part Numbers Affected:

  • ED3
  • USB4
  • QSB
  • SEI-USB
  • MD2S
  • PS-5, PS-12, PS-24, PS-48 (Power Supplies)
  • PE

For the part numbers listed above, US Digital cannot confirm that they meet Low-Voltage and EMC Directives and for that reason US Digital cannot support shipping those products / product families into the CE required countries (For Example countries in the EU). Those products can still be shipped to Non-CE required countries with a Statement of Material Conformance to the RoHS Directive 2011/65/EU, in place of a RoHS Compliance Declaration.

 Download



Additional Information

Product Notes

  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.
