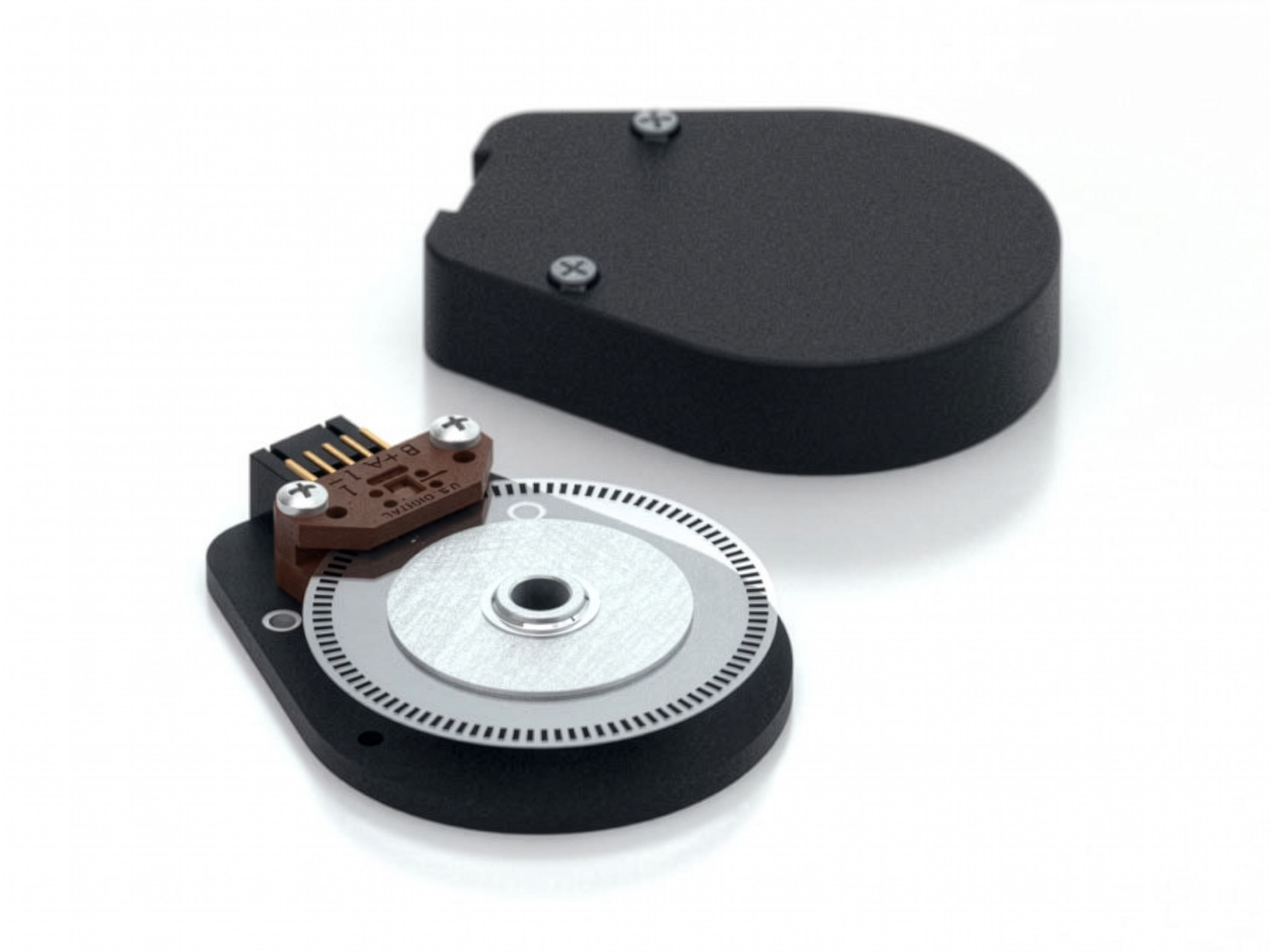

E6 Optical Kit Encoder

E6 Features

  • Quick, simple assembly, and disassembly
  • Rugged screw-together housing
  • Positive latching connector
  • Accepts .010 in. axial shaft play
  • 64 to 10,000 cycles per revolution (CPR)
  • 256 to 40,000 pulses per revolution (PPR)
  • 2 channel quadrature with optional index
  • Multiple Output Drive Options
  • Fits shaft diameters from 2mm to 1 in.

See more info below

Configure the E6

E6 Product Description

Restriction of Hazardous Substances

The E6 Series rotary encoder has a rugged glass-filled polymer enclosure that utilizes either a 5-pin or 10-pin latching connector. This optical incremental encoder is designed to easily mount to and dismount from an existing shaft to provide digital feedback information.

The internal components consist of a mylar disk mounted to a precision machined aluminum hub and an encoder module. The module contains a highly collimated solid-state light source and monolithic phased array sensor, which together provide a system extremely tolerant to mechanical misalignments.

The single-ended output version (S-option) is typically used with cables of 10 feet or less. For longer cable lengths, the differential output version (D-option) is recommended.

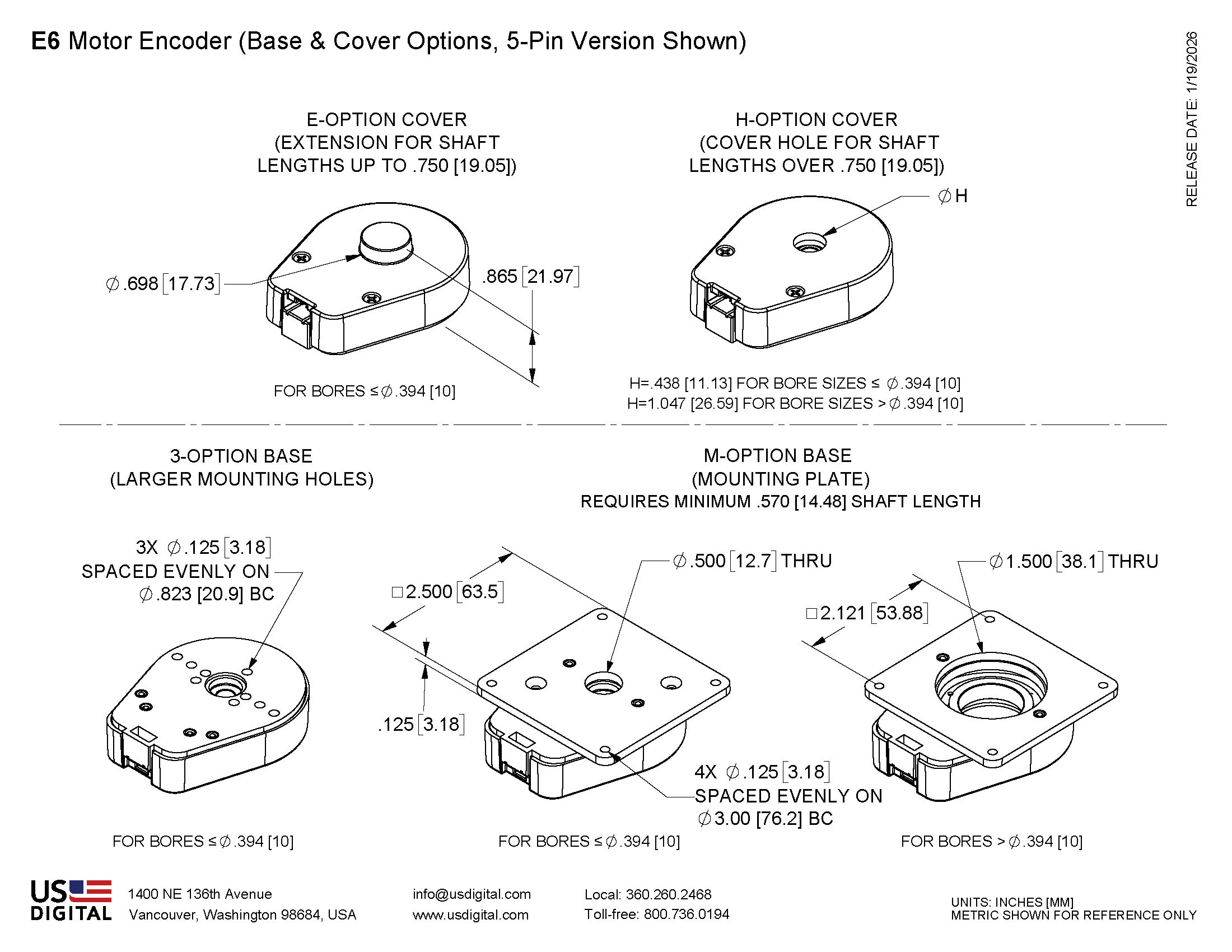

Attachment of the base to a surface may be accomplished by utilizing several machine screw bolt circle options. The use of a centering tool ensures the positioning of the base to the centerline of a shaft. The cover is securely attached to the base with two 4-40 flat head screws to provide a resilient package protecting the internal components.

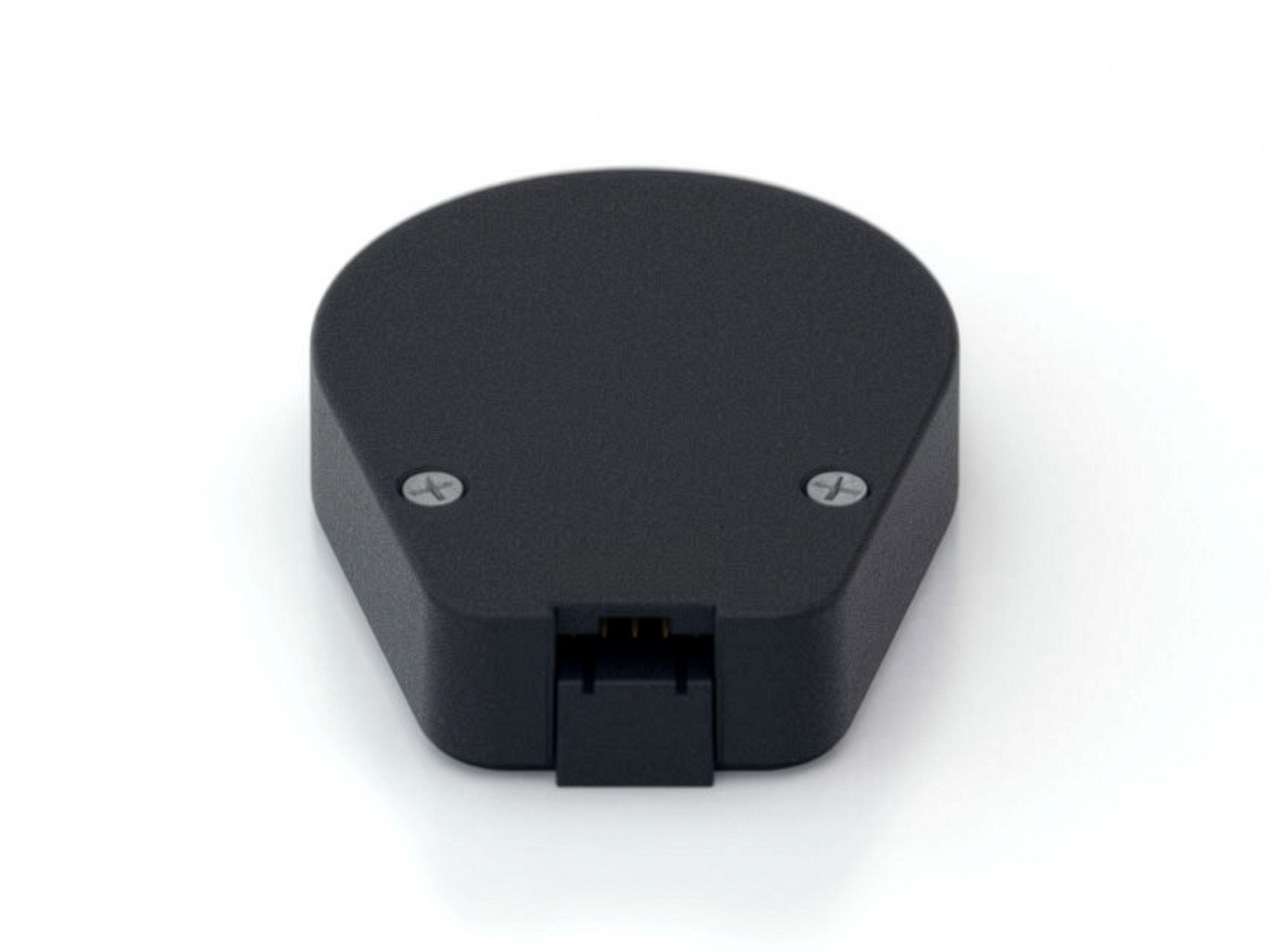

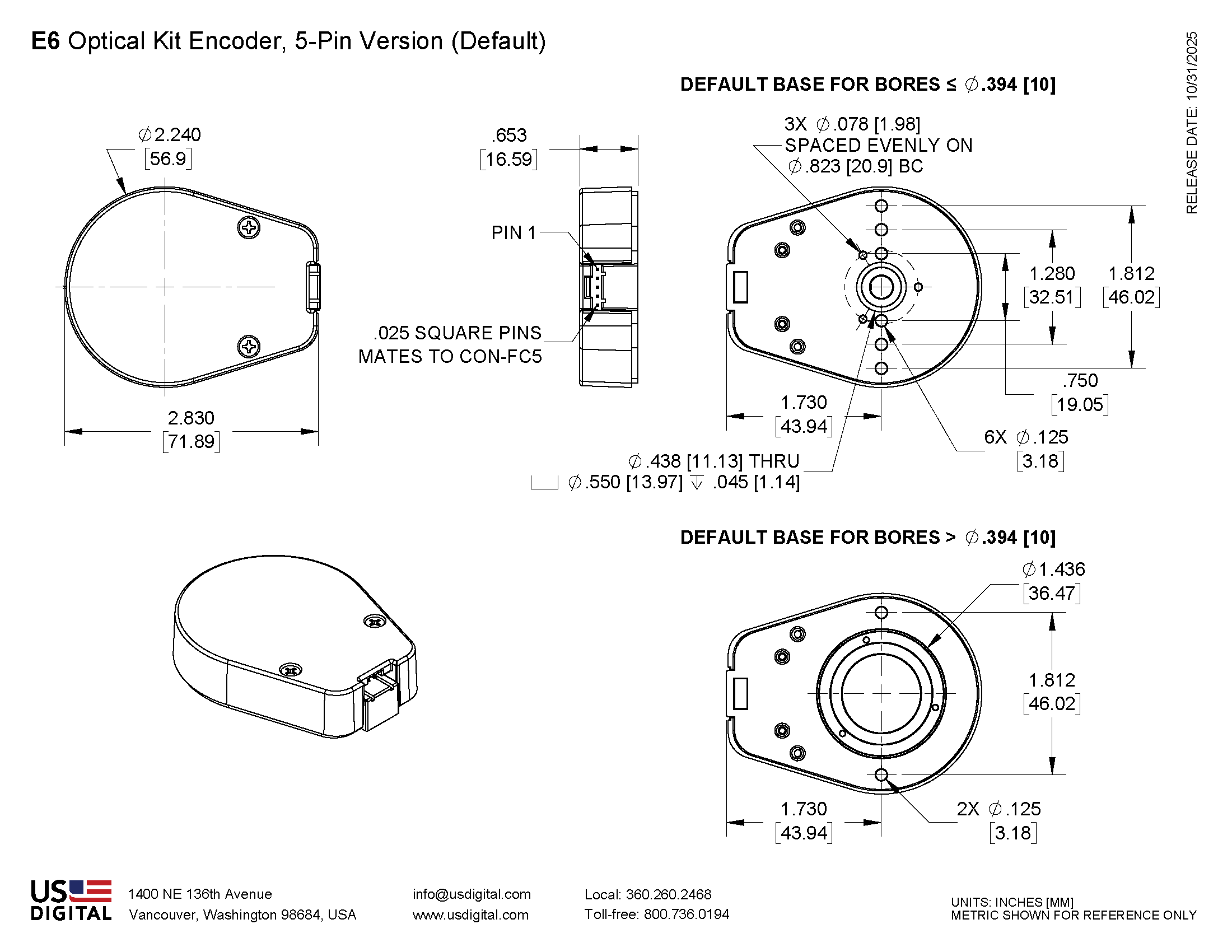

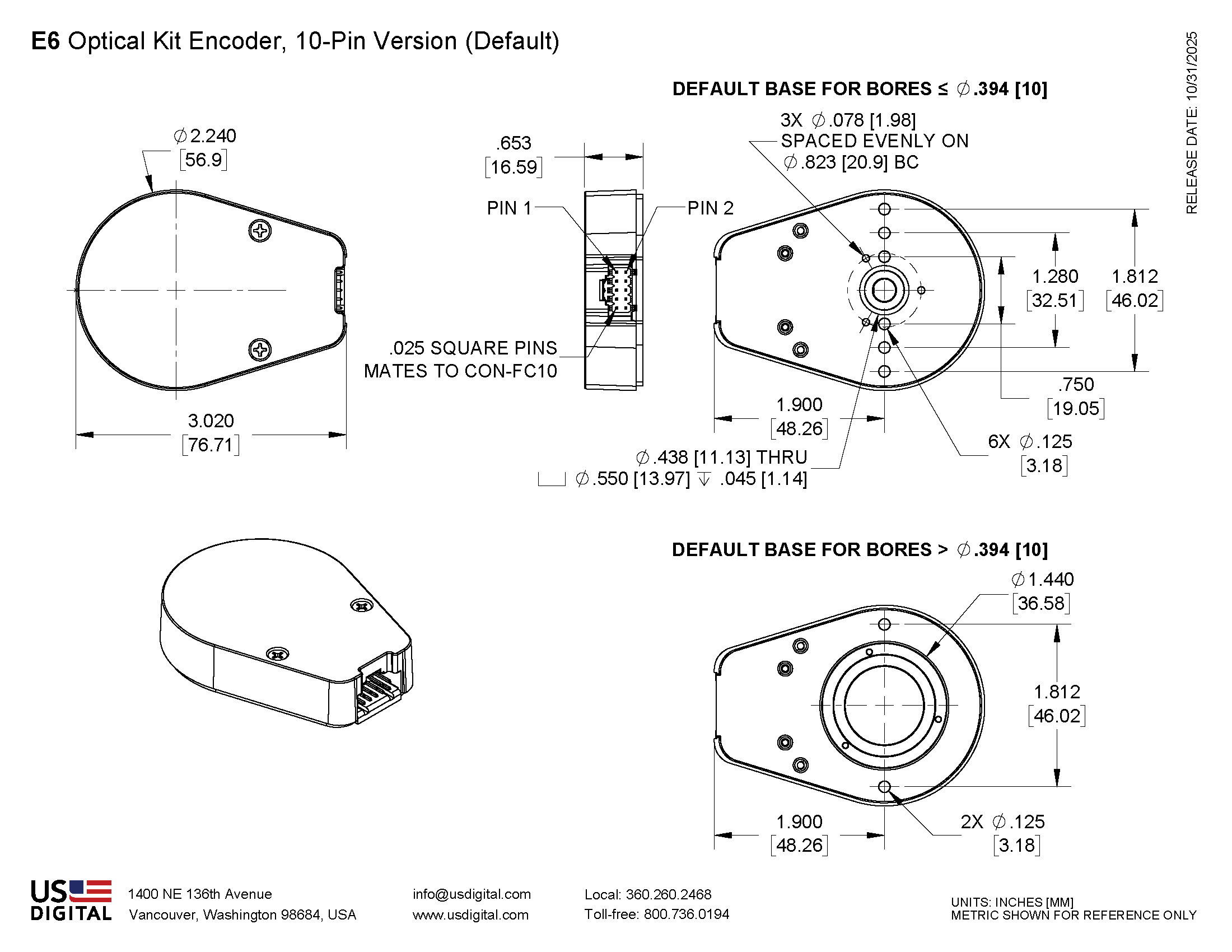

A secure connection to the E6 Series encoder is made through a 5-pin (single-ended versions) or 10-pin (differential, high-voltage or open-collector versions) latching connector. The mating connectors are available from US Digital with several cable options and lengths.

Product Specifications

ENVIRONMENTAL

PARAMETER VALUE UNITS
Operating Temperature (CPR < 3600) -40 to 100 C
Operating Temperature (CPR ≥ 3600) -25 to 100 C
Electrostatic Discharge
Single-ended (-A, -S version), IEC 61000-4-2
Differential (-D, -L version), Human Body Model
High-Voltage, Open-collector (H, C option), IEC 61000-4-2
± 4
± 2
± 4		 kV
Vibration (10Hz to 2kHz, sinusoidal) 20 G
Shock (6 milliseconds, half-sine) 75 G

MECHANICAL

PARAMETER VALUE UNITS
Max. Shaft Axial Play ±0.010 in.
Max. Shaft Runout 0.004 T.I.R. in.
Max. Acceleration 250000 rad/sec²
For CPR ≤ 2500:
Max. RPM (1)
Max. A/B Frequency
e.x. CPR=2500, Max. RPM=7200
e.x. CPR=100, Max. RPM=60000
minimum value of ((18 x 10^6) / CPR) and (60000)
300
RPM
kHz
For CPR = 3600, 4000, 4096, 5000:
Max. RPM (1)
Max. A/B Frequency
(21.6 x 10^6) / CPR
360
RPM
kHz
For CPR = 7200, 8000, 8192, 10000:
Max. RPM (1)
Max. A/B Frequency
(43.2 x 10^6) / CPR
720
RPM
kHz
Typical Product Weight
Single-Ended (S option)
Differential (D, L option)
High-Voltage, Open-Collector (H, C option)
1.55
1.83
1.83
oz.
Codewheel Moment of Inertia 8.9 x 10^-5 for bore < 12mm
4.0 x 10^-4 for bore ≥ 12 mm		 oz-in-s²
Hub Set Screw #3-48 or #4-48
Hex Wrench Size 0.050 in.
Encoder Base Plate Thickness 0.135 in.
3 Mounting Screw Size #0-80
2 Mounting Screw Size #2-56 or #4-40
3 Screw Bolt Circle Diameter (2) 0.823 ± 0.005 in.
2 Screw Bolt Circle Diameter 0.750 ± 0.005 in.

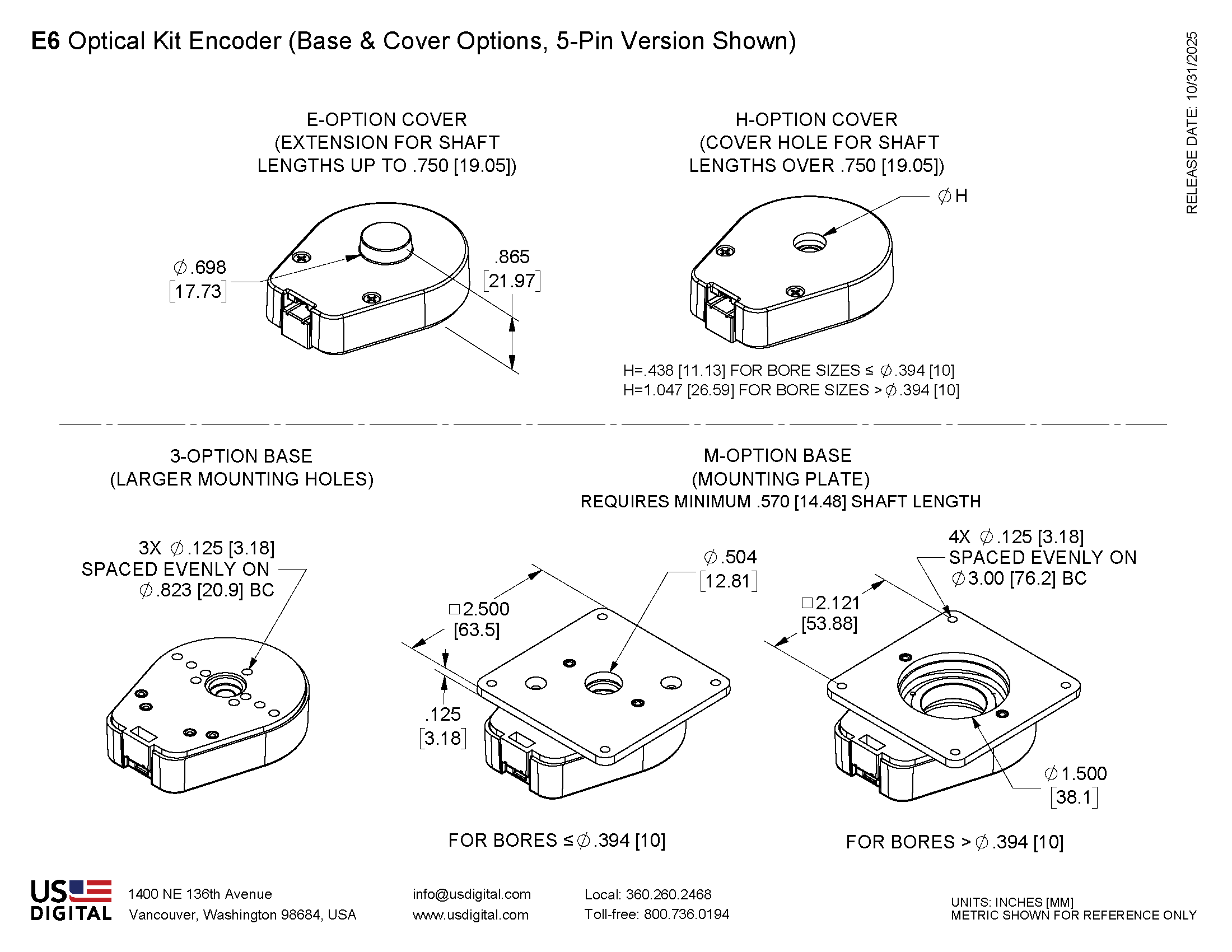

Required Shaft Length (3)
  With E-option (2)
  With H-option		 0.445 to 0.570
0.445 to 0.750
> 0.445		 in.
Index Alignment to Hub Set Screw 180 Typical degrees

(1) 60000 RPM is the maximum rpm due to mechanical considerations. The maximum RPM due to the module's maximum frequency response is dependent upon the module’s resolution (CPR).

(2) Only for shaft diameters < 0.472".

(3) Add 0.125" to all required shaft lengths when using M-option.

TORQUE SPECIFICATIONS

PARAMETER VALUE TORQUE
Hub Set Screw 2-3 in-lbs
Cover Screw 2-4 in-lbs
Base Mounting Screw (#0-80) 1-2 in-lbs
Base Mounting Screw (#2-56) 2-3 in-lbs
Base Mounting Screw (#4-40) 4-6 in-lbs
Adapter Plate Mounting Surface (#2-56 screws) 2-3 in-lbs
Adapter Plate Mounting Surface (#4-40 screws) 4-6 in-lbs
Module Mounting Screw 3.5-4 in-lbs

PHASE RELATIONSHIP

SINGLE-ENDED (S) / DIFFERENTIAL (D) / HIGH-VOLTAGE (H) / OPEN-COLLECTOR (C) OPTION:

A leads B for clockwise shaft rotation, and B leads A for counterclockwise rotation as viewed from the cover side of the encoder.

BROADCOM / AVAGO COMPATIBLE PIN-OUT (A, L) OPTION:

B leads A for clockwise shaft rotation, and A leads B for counterclockwise rotation as viewed from the cover side of the encoder.

SINGLE-ENDED OPTION

  • S option provides 5V TTL compatible outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27 33 mA CPR < 1000, no load
  54 62 mA CPR ≥ 1000 and < 3600, no load
  72 85 mA CPR ≥ 3600, no load
Low-level Output     0.5 V IOL = 8mA max., CPR < 3600
    0.5 mA IOL = 5mA max., CPR ≥ 3600
  0.05   mA no load, CPR < 3600
  0.25   mA no load, CPR ≥ 3600
High-level Output 2.0     V IOH = -8mA max., CPR < 3600
2.0     V IOH = -5mA max., CPR ≥ 3600
  4.8   V no load, CPR < 3600
  3.5   V no load, CPR ≥ 3600
Output Current Per Channel -8   8 mA CPR < 3600
-5   5 mA CPR ≥ 3600
Output Rise Time   110   nS CPR < 3600
  50   nS CPR ≥ 3600
Output Fall Time   35   nS CPR < 3600
  50   nS CPR ≥ 3600

DIFFERENTIAL OPTION

  • D Option provides differential line driver output
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5 5.0 5.5 V
Supply Current   29 36 mA CPR < 1000, no load
  56 65 mA CPR ≥ 1000 and < 3600, no load
  74 88 mA CPR ≥ 3600, no load
Low-level Output   0.2 0.4 V IOL = 20mA max.
High-level Output 2.4 3.4   V IOH = -20mA max.
Differential Output Rise/Fall Time     15  nS

HIGH-VOLTAGE OPTION

  • H option uses a higher supply voltage and provides both single-ended and open-collector outputs
  • Single-ended outputs are 5V TTL compatible (same as S option). See Pin-out.
  • Specifications apply over the entire operating temperature range
  • For complete details, see the EM1 or EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 7.5   30.0 V
Supply Current, 24V power   8 10 mA CPR < 500, no load
  16 19 mA CPR ≥ 500 and < 2000, no load
  22 25 mA CPR ≥ 2000, no load
Open Collector "On" Resistance   2   ohms
Open Collector Sink Current     200 mA
Output Low Voltage     0.4 V 200 mA sink current
Open Collector Pullup Voltage     50 V

PIN-OUTS

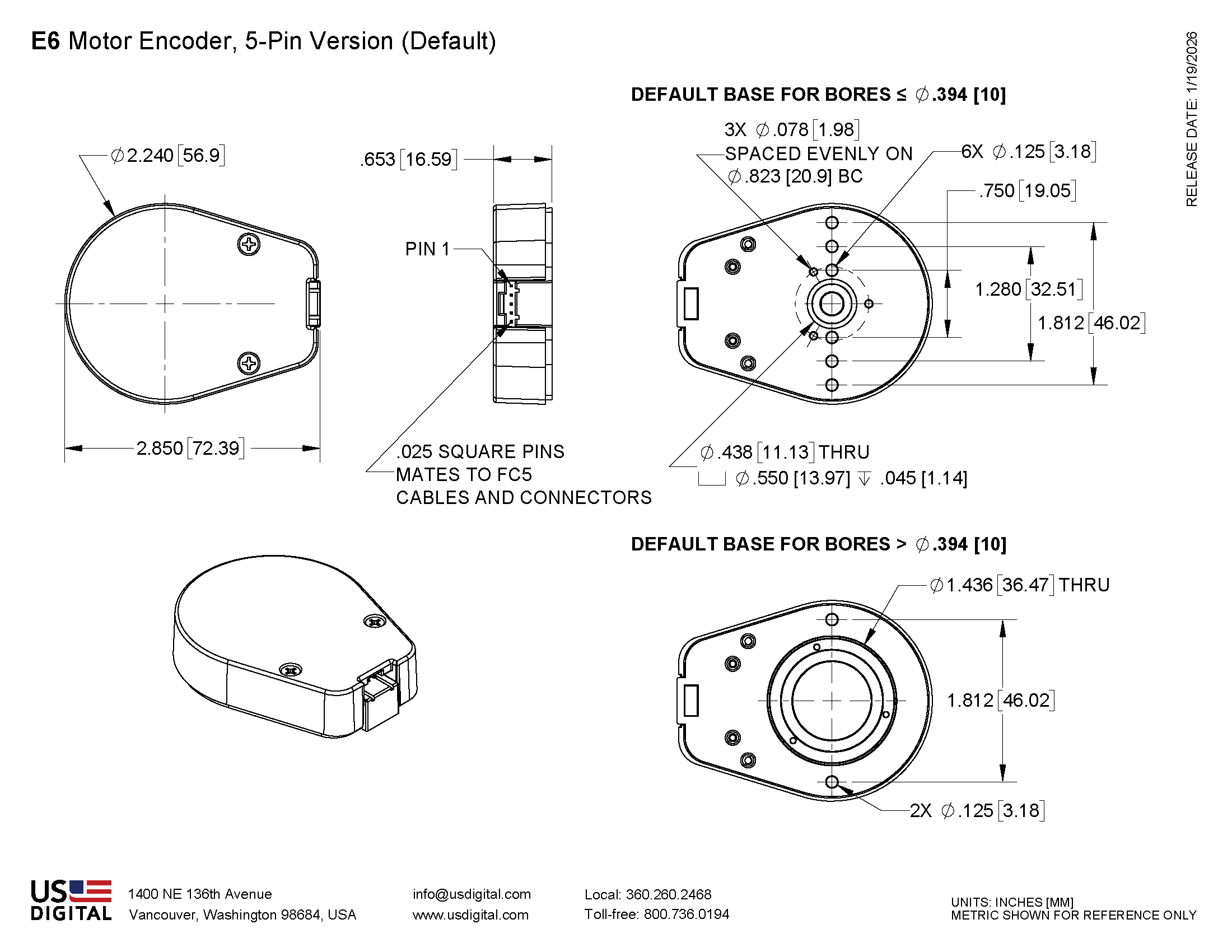

5-PIN SINGLE-ENDED

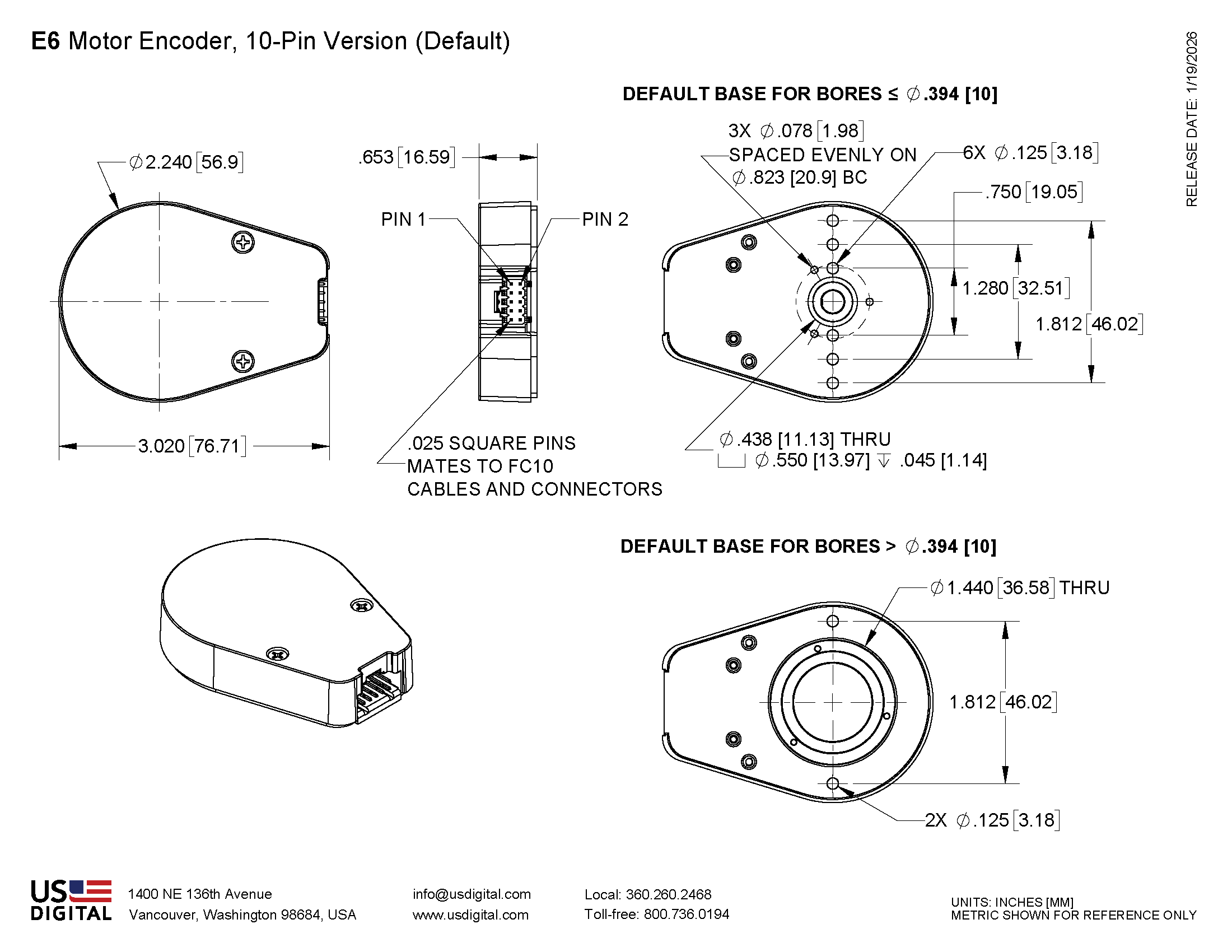

S OPTION (1)		 10-PIN DIFFERENTIAL D OPTION (2)

10-PIN DIFFERENTIAL
L OPTION (2)(3)

 10-PIN SINGLE-ENDED
A-OPTION (2)(3)
Pin Description Pin Description Pin Description Pin Description
1 Ground 1 Ground 1 No connection 1 A channel
2 Index 2 Ground 2 +5VDC power 2 +5VDC power
3 A channel 3 Index- 3 Ground 3 Ground
4 +5VDC power 4 Index+ 4 No connection 4 No connection
5 B channel 5 A- channel 5 A- channel 5 No connection
    6 A+ channel 6 A+ channel 6 Ground
    7 +5VDC power 7 B- channel 7 +5VDC power
    8 +5VDC power 8 B+ channel 8 B+ channel
    9 B- channel 9 Index- 9 +5VDC power
    10 B+ channel 10 Index+ 10 Index



10-PIN HIGH-VOLTAGE
H OPTION (2)
Pin Description
1 Ground
2 Ground
3 Index- (open collector)
4 Index+ (single-ended)
5 A- channel (open collector)
6 A+ channel (single-ended)
7 7.5-30V power
8 7.5-30V power
9 B- channel (open collector)
10 B+ channel (single-ended)



(1) 5-pin single-ended mating connector is CON-FC5.
(2) 10-pin differential mating connector is CON-FC10.
(3) Broadcom / Avago compatible version.

ACCESSORIES

1. Centering Tool

The centering tool is only included with the -3 packaging option. It has to be ordered separately for other packaging options.

Part #: CTOOL - (Shaft Diameter)
Description: This reusable tool provides a simple method for accurately centering the E6 base onto the shaft.

 It is recommended for the following situations:

  • When using mounting screws smaller than #4-40.
  • When the position of the mounting holes is in question.
  • When using the 3-hole mounting pattern.
  • When using the T-option transfer adhesive.

2. Hex Tool

Depending on the order quantity and packaging option, either a hex driver or hex wrench is included.

Part #: HEXD-050
Description: Hex driver, .050" flat-to-flat for #3-48 or #4-48 set screws. Only included with -B or -1 packaging options.

Part #: HEXW-050
Description: Hex wrench, .050" flat-to-flat for #3-48 or #4-48 set screws. Only included with -2 or -3 packaging options.

3. Spacer Tool

A spacer tool is included for all packaging options.

Part #: SPACER-E6S
Description: For shaft sizes < 0.472"

Part #: SPACER-E6L
Description: For shaft sizes 12mm to 1"

4. Screws

Part #: SCREW-080-250-PH
Description: Pan Head, Philips #0-80 UNF x 1/4"
Use: Base Mounting
Quantity Required: 3
Screws are not included

Part #: SCREW-256-250-PH
Description: Pan Head, Philips #2-56 UNC x 1/4"
Use: Base Mounting
Quantity Required: 2
Screws are not included

Part #: SCREW-348-125-SS
Description: Socket Head Set Screw, 3-48 UNC x 1/8"
Use: Hub/Disk Mounting for 12mm - 1" Bore
Quantity Required: 2
Screws are included

Part #: SCREW-440-250-PH
Description: Pan Head, Philips #4-40 UNC x 1/4"
Use: Base Mounting
Quantity Required: 2
Screws are not included

Part #: SCREW-440-500-PH
Description: Pan Head, Phillips #4-40 UNC x 1/2"
Use: Module Mounting
Quantity Required: 2
Screws are included

Part #: SCREW-440-625-FH
Description: Flat Head, Phillips 4-40 UNC x 5/8"
Use: Cover Mounting
Quantity Required: 2
Screws are included

Part #: SCREW-448-063-SS
Description: Socket Head Set Screw, 4-48 UNC x 1/16"
Use: Hub/Disk Mounting for 5/16" - 10mm Bore
Quantity Required: 1
Screw is included

Part #: SCREW-448-125-SS
Description: Socket Head Set Screw, 4-48 UNC x 1/8"
Use: Hub/Disk Mounting for 2mm - 1/4" Bore
Quantity Required: 1
Screw is included

OUTPUT WAVEFORMS

PRODUCT CHANGE NOTIFICATIONS

Title Date Description Download
E3 and E6 Packaging Option Changes - PCN 7357 2/21/2024 As part of our ongoing continuous improvement efforts, US Digital is implementing a change to the packaging options for our E3 and E6 encoders. We will now include a centering tool with all packaging options. We are implementing this change to ensure that the encoder is properly assembled using the tools as designed, as per our assembly instructions. A centering tool is needed to properly center the encoder base to the mounting surface. By including the centering tool, customers will no longer need to purchase them separately. Download
Marketing/Insert - PCN 7058 11/04/2020 As part of our ongoing continuous improvement efforts, improvements are being incorporated into the E6, S6 and H6 series of Optical Encoders, including both single-end and differential output versions. Download
2" Hub/Disk Assembly Screw Change - PCN 6644 9/27/2018 As part of our ongoing continuous improvement efforts, the screws used in the assembly of the 2" hub/disk assembly, that is with a bore of 12mm and larger, will be changed from a black oxide to a zinc plated screw.The zinc plating improves corrosion resistance as well as alleviates any potential for oil residue.The plating change has no effect on form, fit or function of our hubdisk assembly. Download
Update to 1" and 2" Disks - PCN 6232 5/24/2018 This notice is to inform our customers of a minor disk design modification that is being implemented for standard 1" and 2" disks. This is a continuation of a change that was implemented for our index disks in 2015.We are revising the text on the disk, adding the US Digital logo and a line that is used internally by our manufacturing group.The change does not effect the quadrature or index tracks; therefore, it has no impact on form, fit or function. Download
Hub Set Screw Production Change - PCN 5367 7/20/2015 As part of our ongoing continuous improvement efforts, US Digital is implementing a change related to the production of our 5/16" (.313), 8mm (.315), 3/8" (.375), and 10mm (.394) HUBDISK assemblies. We are adding a low strength threadlocker to the set screw during our assembly process to assist in securing the set screw in the hub during transportation. This will aid in the set screw retention of these specific hub sizes; ensuring the retention is sufficient and avoid the potential of them backing out of the hub assembly during transit. This change does not affect form, fit or function. Download
Laser Marking - PCN 5253 6/17/2015 As part of our ongoing continuous improvement efforts, US Digital is changing the labeling/marking method for our E3, E6, H3, H6, S1, S2 and S6 products. Download
EM1 & EM2 Update - PCN 4199 1/14/2014 Based on our continuous process improvement program, US Digital is changing the current marking method for our EM1 and EM2 encoder modules to a serialization method. This change will allow for each module to have a unique code; the current marking method is based on a date code system that includes all encoder modules produced within a specific week / year. The serialization system will be based on a hexadecimal system. Download
EM1 LED Die - PCN 1016 2/7/2013 As part of US Digital's continual assurance of supply strategy, we have qualified additional sources for our LED die used in our EM1 encoder module, which in turn impacts all of the following products:EM1, E2, E3, E5, E6, H1, H15, H3, H5, H6, HB5M, HB6M, HD25, PE, S1, S2, S5, S6, T5 and T6The device specification will remain the same, i.e. there will be no change to form, fit or function of the product(s) as specified by US Digital. The appropriate quality and reliability testing has been performed on representative products to ensure normal parametric distribution, consistent with US Digital's quality and reliability standards. Download

Additional Information

Product Notes

  • Cables and connectors are not included and must be ordered separately.
  • US Digital® warrants its products against defects in materials and workmanship for two years. See complete warranty for details.

Datasheets

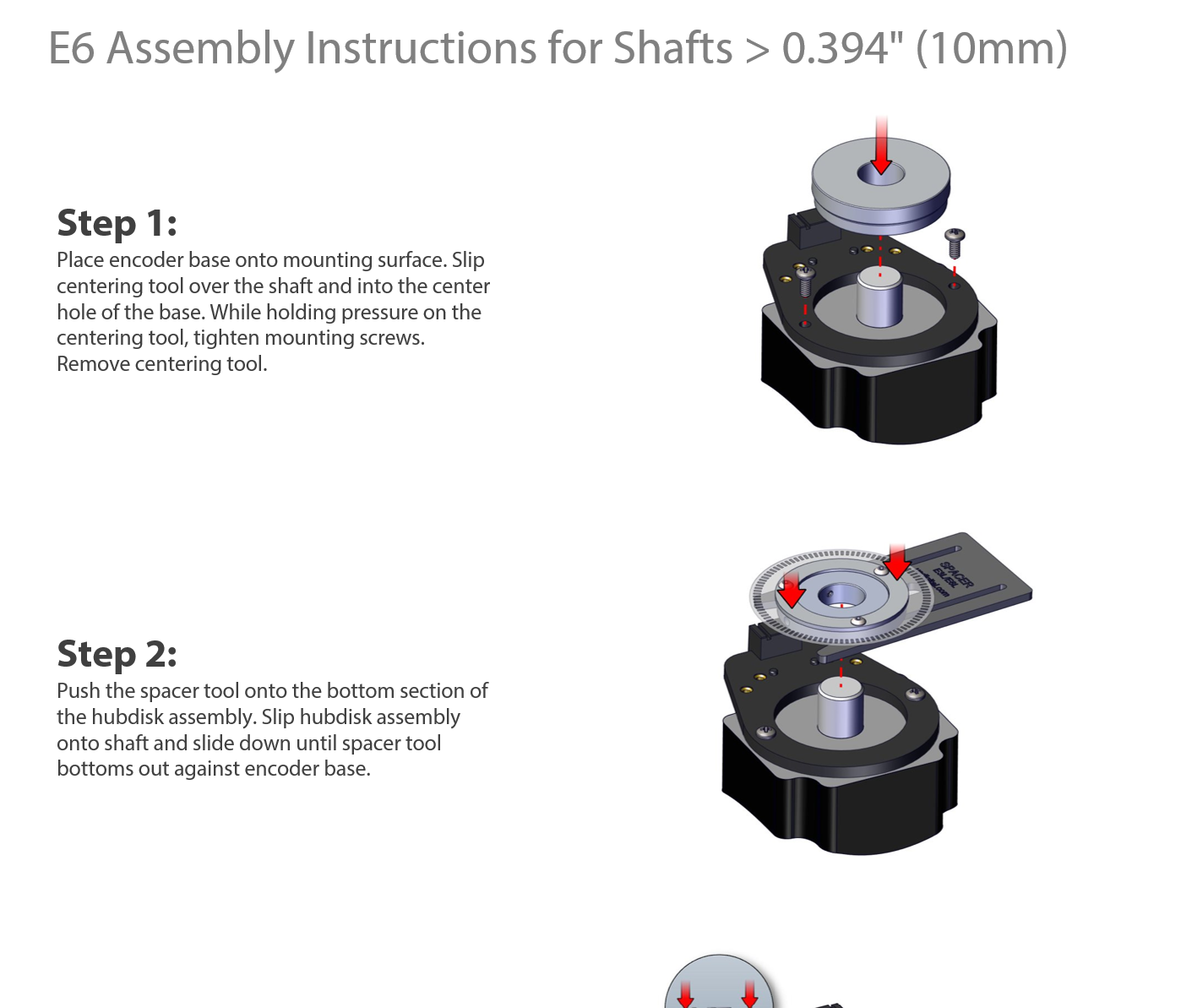

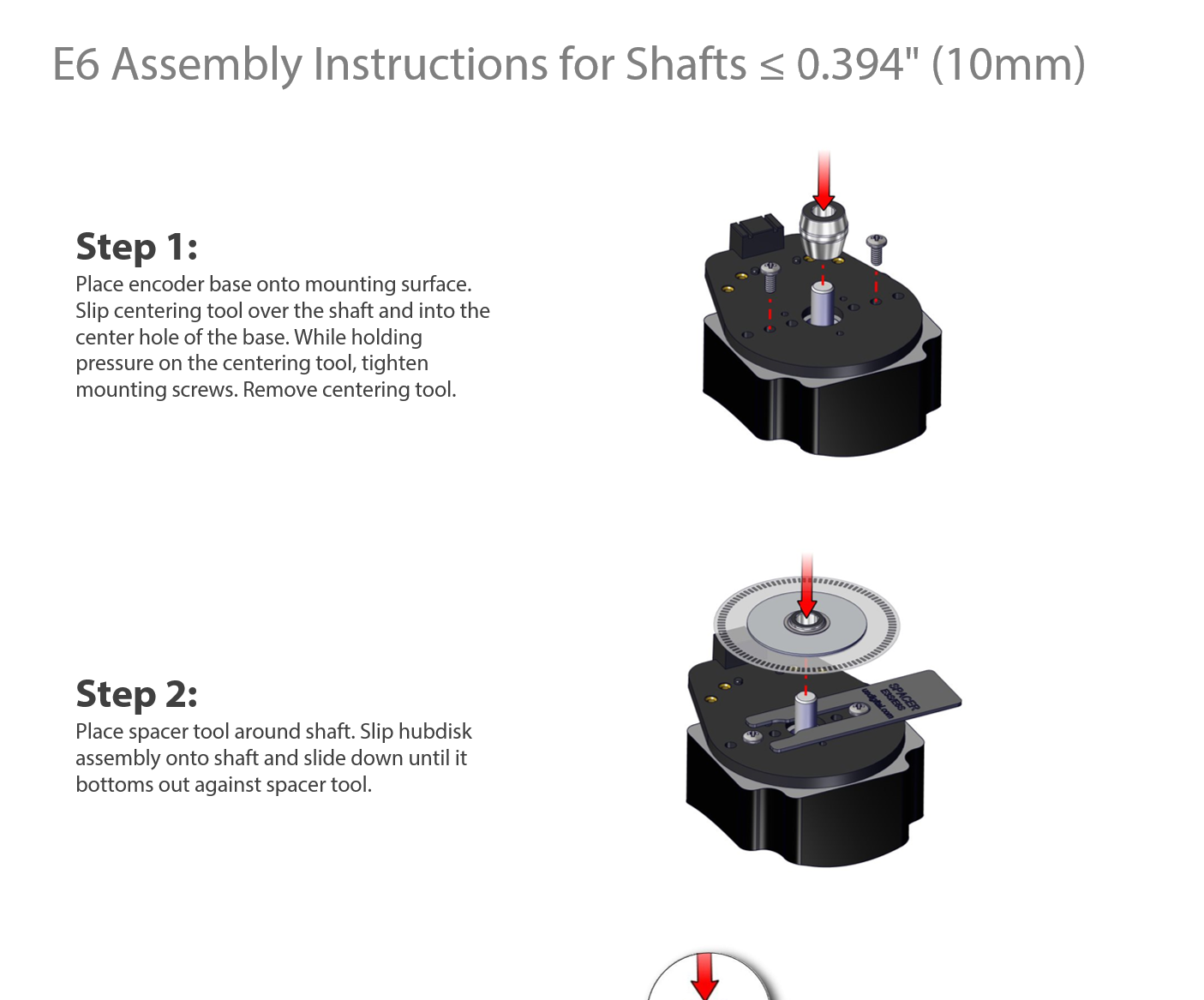

Assembly Instructions

Related Pages

3D Model Downloads

Please configure your product first to download a 3D model.
(Note: The formats below will become links if there are 3D models available.)

    • SolidWorks Format
    • IGES Format
    • Parasolid Format
    • STEP Format

    Product Configurator

    For pricing, this product requires configuration.

    Begin by completing either Option 1 or 2 below. Questions? Contact our support team.

    Option 1: Configure the Product

    Use the configuration tool to provide information regarding your product needs. Not sure what to do or need additional assistance? Our support team is here to help.

    We recommend enabling Javascript when using the product configurator.

    Option 2: Enter the Product Part Number Directly

    If you know your product part number, enter it in the following field. The part number format looks something like this: E5-5000-394-IE-S-D-D-3...

    Our products are not currently available for direct online purchase. To place an order please contact us directly with your part number.

    For purchasing or volume discounts, please configure the part above, then use the completed part number and contact us!

    Feedback

    US Digital's mission is a commitment to quality and constant improvement. If you find an error to a product on this page, please let us know!
