S6 Optical Shaft Encoder

S6 Features

  • Small size
  • 64 to 10,000 CPR (256 to 40,000 PPR)
  • Optional differential / line-driver output
  • Positive latching connector
  • 2-channel quadrature with optional index
  • Multiple Output Drive Options
  • Ball-bearing option tracks to 10,000 RPM
  • Wide operating temperature

See more info below

Configure the S6

S6 Product Description

Restriction of Hazardous Substances

The S6 series high resolution optical shaft encoder is a non-contacting rotary to digital converter. Useful for position feedback or manual interface, the encoder converts real-time shaft angle, speed, and direction into TTL-compatible quadrature outputs with or without index. It operates from a single +5VDC supply.

Three shaft torque versions are available:

  • The default torque version has a sleeve bushing designed to provide torque and feel ideal for front panel human interface applications.
  • The ball-bearing version uses miniature precision ball bearings that are suitable for high-speed and ultra-low torque applications.
  • The light static drag option has a sleeve bushing that does not intentionally add torque for low RPM applications where a small amount of torque is acceptable.

A secure connection to the S6 Series encoder is made through a 5-pin (single-ended versions) or 10-pin (differential or high-voltage versions) latching connector. The mating connectors are available from US Digital with several cable options and lengths.

The internal differential line driver (26C31) can source and sink 20mA at TTL levels for differential versions. The recommended receiver is the industry-standard 26C32. Maximum noise immunity is achieved when the differential receiver is terminated with a 150Ω resistor in series with a .0047 μF capacitor placed across each differential pair. The capacitor conserves power; otherwise, power consumption would increase by approximately 20mA per pair or 60mA for three pairs.

Product Specifications

ENVIRONMENTAL

Parameter Value Units
Operating Temperature, CPR < 2000 -40 to 100 C
Operating Temperature, CPR ≥ 2000 -25 to 100 C
Electrostatic Discharge
Single-ended (S option), IEC 61000-4-2
Differential (D, L option), Human Body Model
High-Voltage, Open-collector (H, C option), IEC 61000-4-2

± 4
± 2
± 4
kV
Vibration (10Hz to 2kHz, sinusoidal) 20 G
Shock (6 milliseconds, half-sine) 75 G

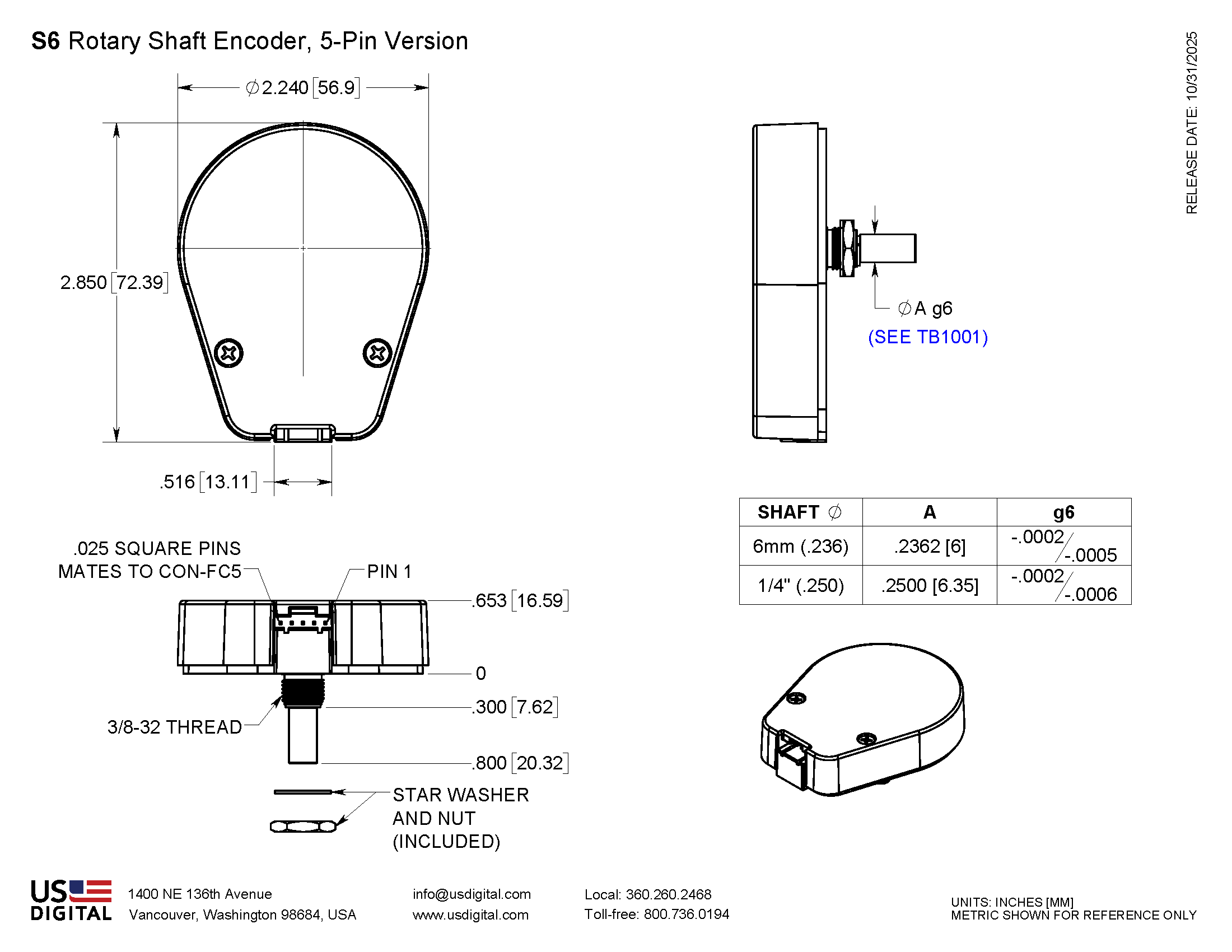

MECHANICAL

PARAMETER SLEEVE BUSHING BALL BEARING
Max. Acceleration 250000 rad/sec² 250000 rad/sec²
Max. Shaft Speed (mechanical) 100 rpm (1) 10000 rpm (1)
Max. Shaft Torque 0.5 ± 0.2 in-oz
0.3 in-oz (N-option)
0.05 in-oz
Max. Shaft Loading 2 lbs. dynamic
20 lbs. static
1 lb.
Bearing Life > 1000000 revolutions L10 = (19.3/Fr)³ *
Where L10 = bearing life in millions of revs, and
Fr = radial shaft loading in pounds
Weight
  Single-ended (S option)
  Differential (D option)
  High-Voltage, Open-Collector (H, C option)

1.92 oz.
2.00 oz.
2.00 oz.

1.78 oz.
1.86 oz.
1.86 oz.
Max. Shaft Runout 0.0015 in. T.I.R. 0.0015 in. T.I.R.
Max. Panel Nut Tightening Torque 20 in-lbs 20 in-lbs
Technical Bulletin TB1001 - Shaft and Bore Tolerances Download

* Only valid with negligible axial shaft loading.

(1) The maximum speed due to electrical considerations is dependent on the CPR. See the EM1 and EM2 product pages.

PHASE RELATIONSHIP

B leads A for clockwise shaft rotation, and A leads B for counterclockwise rotation when viewed from the shaft side of the encoder.

SINGLE-ENDED OPTION

  • S option provides 5V TTL compatible outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5  5.0 5.5 V
Supply Current   27 33 mA CPR < 1000, no load
  54 62 mA CPR ≥ 1000 and < 3600, no load
  72 85 mA CPR ≥ 3600, no load
Low-level Output     0.5 V IOL = 8mA max., CPR < 3600
    0.5 mA IOL = 5mA max., CPR ≥ 3600
  0.05   mA no load, CPR < 3600
  0.25   mA no load, CPR ≥ 3600
High-level Output 2.0     V IOH = -8mA max., CPR < 3600
2.0     V IOH = -5mA max., CPR ≥ 3600
  4.8   V no load, CPR < 3600
  3.5   V no load, CPR ≥ 3600
Output Current Per Channel -8   8 mA CPR < 3600
-5   5 mA CPR ≥ 3600
Output Rise Time   110   nS CPR < 3600
  50   nS CPR ≥ 3600
Output Fall Time   35   nS CPR < 3600
  50   nS CPR ≥ 3600

DIFFERENTIAL OPTION

  • D Option provides differential line driver outputs
  • Specifications apply over the entire operating temperature range
  • Typical values are specified at Vcc = 5.0Vdc and 25°C
  • For complete details, see the EM1 and EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 4.5 5.0 5.5 V
Supply Current   29 36 mA CPR < 1000, no load
  56 65 mA CPR ≥ 1000 and < 3600, no load
  74 88 mA CPR ≥ 3600, no load
Low-level Output   0.2 0.4 V IOL = 20mA max.
High-level Output 2.4 3.4   V IOH = -20mA max.
Differential Output Rise/Fall Time     15  nS

HIGH-VOLTAGE OPTION

  • H option uses a higher supply voltage and provides both single-ended and open-collector outputs
  • Single-ended outputs are 5V TTL compatible (same as S option). See Pin-out.
  • Specifications apply over the entire operating temperature range
  • For complete details, see the EM1 or EM2 product pages
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
Supply Voltage 7.5   30.0 V
Supply Current, 24V power   8 10 mA CPR < 500, no load
  16 19 mA CPR ≥ 500 and < 2000, no load
  22 25 mA CPR ≥ 2000, no load
Open Collector "On" Resistance   2   ohms
Open Collector Sink Current     200 mA
Output Low Voltage     0.4 V 200 mA sink current
Open Collector Pullup Voltage     50 V

PIN-OUTS

5-PIN SINGLE-ENDED
S OPTION (1)

10-PIN DIFFERENTIAL
D OPTION (2)
Pin Description Pin Description
1 Ground 1 Ground
2 Index 2 Ground
3 A channel 3 Index-
4 +5VDC power 4 Index+
5 B channel 5 A- channel
    6 A+ channel
    7 +5VDC power
    8 +5VDC power
    9 B- channel
    10 B+ channel



10-PIN HIGH-VOLTAGE
H OPTION (2)
Pin Description
1 Ground
2 Ground
3 Index- (open collector)
4 Index+ (single-ended)
5 A- channel (open collector)
6 A+ channel (single-ended)
7 7.5-30V power
8 7.5-30V power
9 B- channel (open collector)
10 B+ channel (single-ended)



(1) 5-pin single-ended mating connector is CON-FC5.
(2) 10-pin differential mating connector is CON-FC10.
